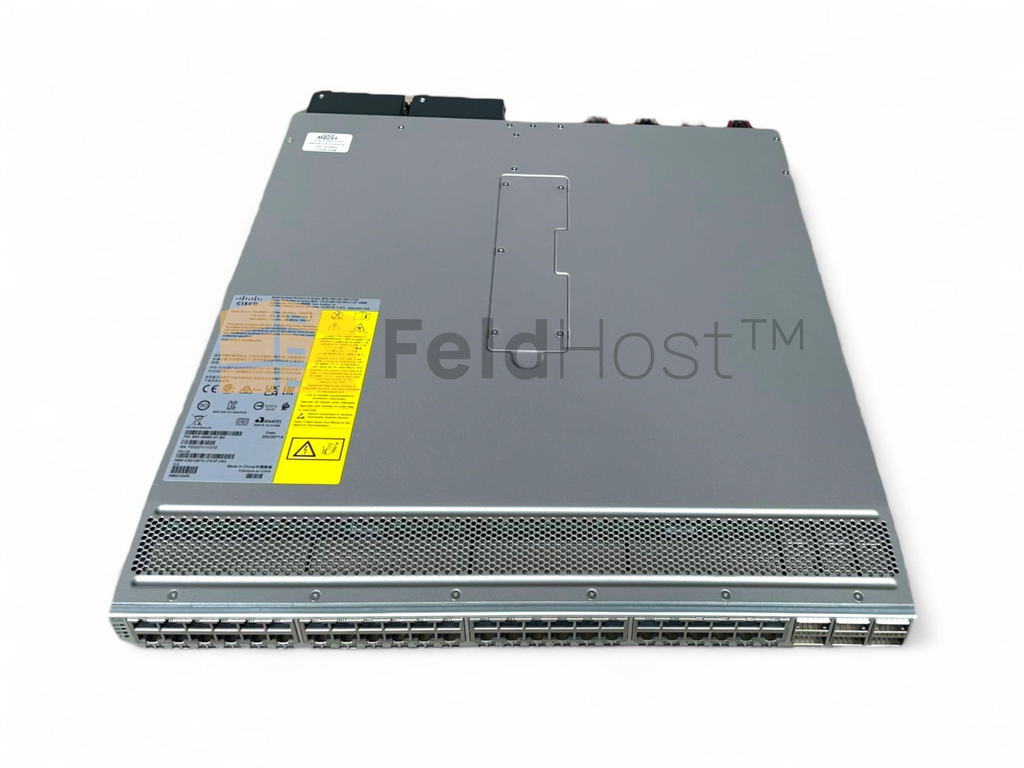

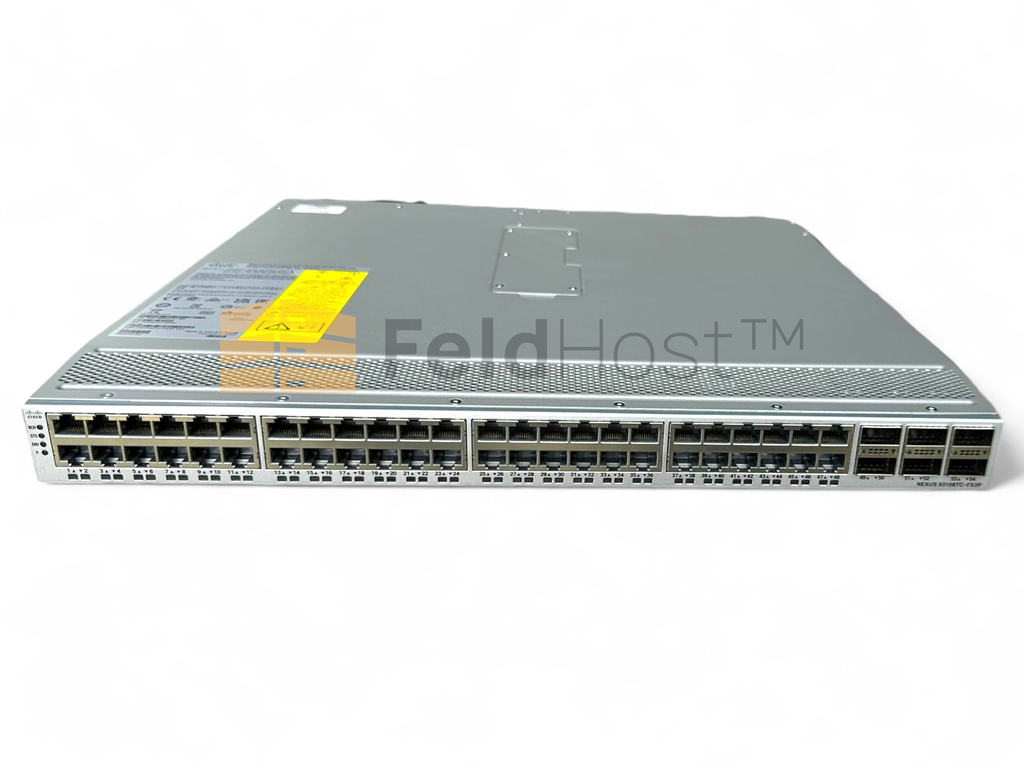

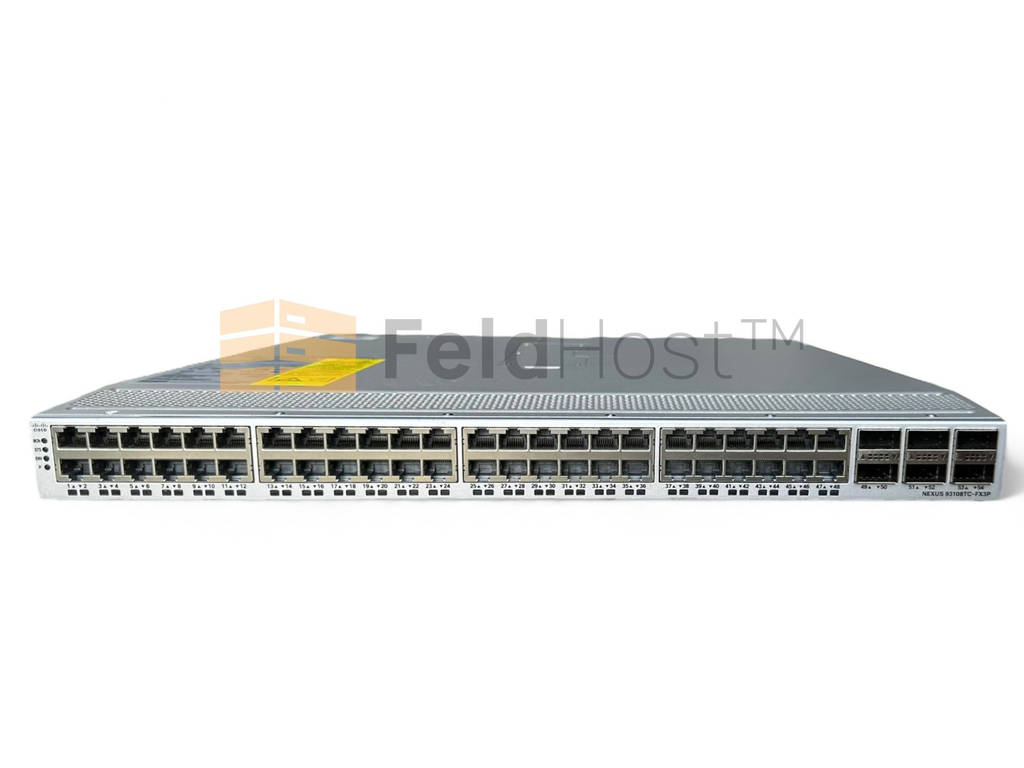

Cisco Nexus 9300 FX3 48-port 10G/mGig copper with 6x100GbE uplink, UPOE N9K-C93108TC-FX3P

switch# show inventory
NAME: "Chassis",  DESCR: "Nexus9000 C93108TC-FX3P Chassis"
PID: N9K-C93108TC-FX3P   ,  VID: V03 ,  SN: *********

NAME: "Slot 1",  DESCR: "48x10GT + 6x40/100G Ethernet Module"
PID: N9K-C93108TC-FX3P   ,  VID: V03 ,  SN: *********

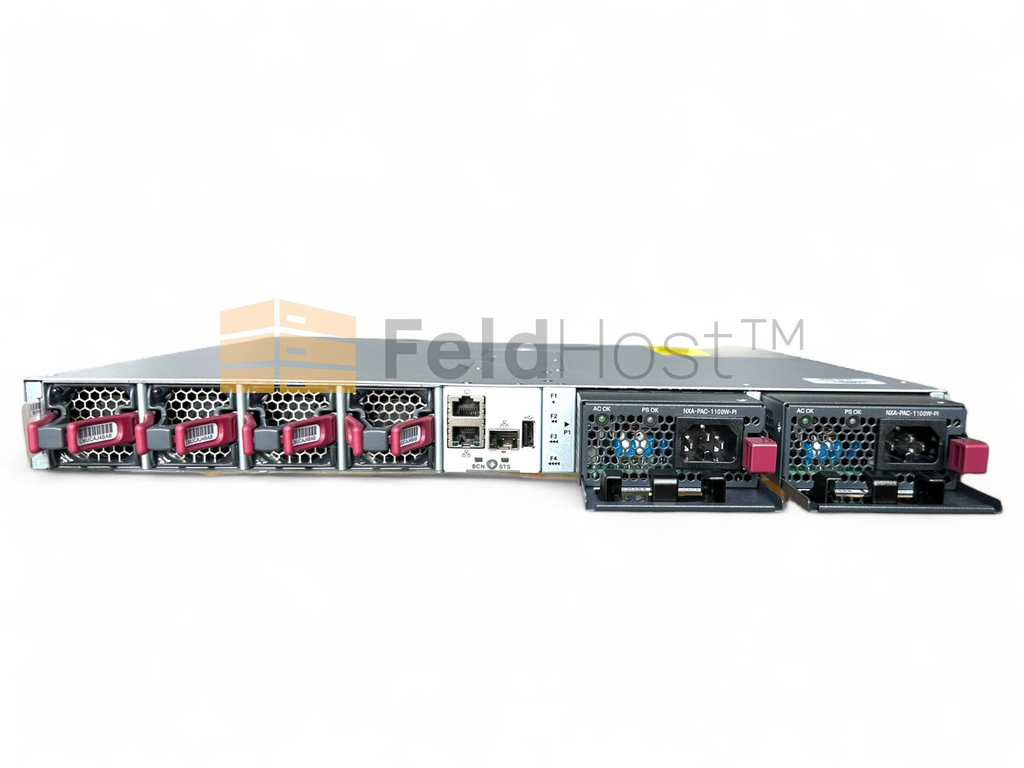

NAME: "Power Supply 1",  DESCR: "Nexus9000 C93108TC-FX3P Chassis Power Supply"
PID: NXA-PAC-1100W-PI    ,  VID: V02 ,  SN: *********

NAME: "Power Supply 2",  DESCR: "Nexus9000 C93108TC-FX3P Chassis Power Supply"
PID: NXA-PAC-1100W-PI    ,  VID: V02 ,  SN: *********

NAME: "Fan 1",  DESCR: "Nexus9000 C93108TC-FX3P Chassis Fan Module"
PID: NXA-FAN-35CFM-PI    ,  VID: V01 ,  SN: N/A

NAME: "Fan 2",  DESCR: "Nexus9000 C93108TC-FX3P Chassis Fan Module"
PID: NXA-FAN-35CFM-PI    ,  VID: V01 ,  SN: N/A

NAME: "Fan 3",  DESCR: "Nexus9000 C93108TC-FX3P Chassis Fan Module"
PID: NXA-FAN-35CFM-PI    ,  VID: V01 ,  SN: N/A

NAME: "Fan 4",  DESCR: "Nexus9000 C93108TC-FX3P Chassis Fan Module"
PID: NXA-FAN-35CFM-PI    ,  VID: V01 ,  SN: N/A

switch# show environment
Fan:
---------------------------------------------------------------------------
Fan             Model                Hw     Direction       Status
---------------------------------------------------------------------------
Fan1(sys_fan1)  NXA-FAN-35CFM-PI     --     front-to-back   Ok
Fan2(sys_fan2)  NXA-FAN-35CFM-PI     --     front-to-back   Ok
Fan3(sys_fan3)  NXA-FAN-35CFM-PI     --     front-to-back   Ok
Fan4(sys_fan4)  NXA-FAN-35CFM-PI     --     front-to-back   Ok
Fan_in_PS1      --                   --     front-to-back   Ok
Fan_in_PS2      --                   --     front-to-back   Ok
Fan Zone Speed: Zone 1: 0x80
Fan Air Filter : NotSupported


Power Supply:
Voltage: 12 Volts
Power                      Actual             Actual        Total
Supply    Model            Output             Input        Capacity     Status
                           (Watts )           (Watts )     (Watts )
-------  ----------  ---------------  ------  ----------  --------------------
1        NXA-PAC-1100W-PI      114 W              135 W      1100 W      Ok
2        NXA-PAC-1100W-PI      135 W              157 W      1100 W      Ok


Power Usage Summary:
--------------------
Power Supply redundancy mode (configured)                PS-Redundant
Power Supply redundancy mode (operational)               PS-Redundant

Total Power Capacity (based on configured mode)            1100.00 W
Total Grid-A (first half of PS slots) Power Capacity       1100.00 W
Total Grid-B (second half of PS slots) Power Capacity      1100.00 W
Total Power of all Inputs (cumulative)                     2200.00 W
Total Power Output (actual draw)                            249.00 W
Total Power Input (actual draw)                             293.00 W
Total Power Allocated (budget)                                N/A
Total Power Available for additional modules                  N/A



Temperature:
--------------------------------------------------------------------
Module   Sensor        MajorThresh   MinorThres   CurTemp     Status
                       (Celsius)     (Celsius)    (Celsius)
--------------------------------------------------------------------
1        FRONT           70              42          27         Ok
1        BACK            80              70          39         Ok
1        CPU             90              80          46         Ok
1        SUN1            110             90          49         Ok

switch# show license all

Smart Licensing Status
======================
Utility:
    Status: DISABLED

Smart Licensing using Policy:
    Status: ENABLED

Data Privacy:
    Sending Hostname: yes
    Callhome Hostname Privacy: DISABLED
        Smart Licensing Hostname Privacy: DISABLED
    Version Privacy: DISABLED

Transport:
    Type: CSLU
    Cslu address: cslu-local

Miscellaneous:
    Custom Id: <empty>

Policy:
    Policy in use: Merged from multiple sources
    Reporting ACK required: Yes
    Unenforced/Non-Export:
        First report requirement (days): 90 (CISCO default)
        Ongoing reporting frequency (days): 365 (CISCO default)
        On change reporting (days): 90 (CISCO default)
    Enforced (Pepertual/Subscription):
        First report requirement (days): 0 (CISCO default)
        Ongoing reporting frequency (days): 0 (CISCO default)
        On change reporting (days): 0 (CISCO default)
    Export (Perpetual/Subscription):
        First report requirement (days): 0 (CISCO default)
        Ongoing reporting frequency (days): 0 (CISCO default)
        On change reporting (days): 0 (CISCO default)

Usage reporting:
    Last ACK received: <none>
    Next ACK deadline: <none>
    Reporting push interval: <none>
    Next ACK push check: <none>
    Next report push: <none>
    Last report push: <none>
    Last report file write: <none>

Trust Code installed: <none>


License Usage
=============

Product Information
===================
UDI: PID:N9K-C93108TC-FX3P, SN:*********

HA UDI List:
    Active: PID:N9K-C93108TC-FX3P, SN:*********

Agent Version
=============
Smart Agent for Licensing: 5.2.4_rel/79
