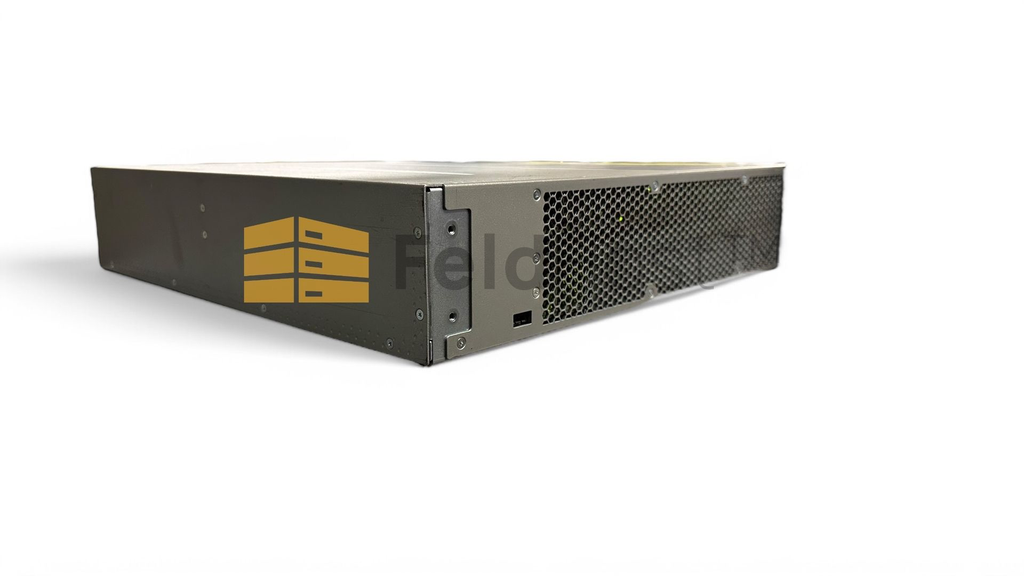

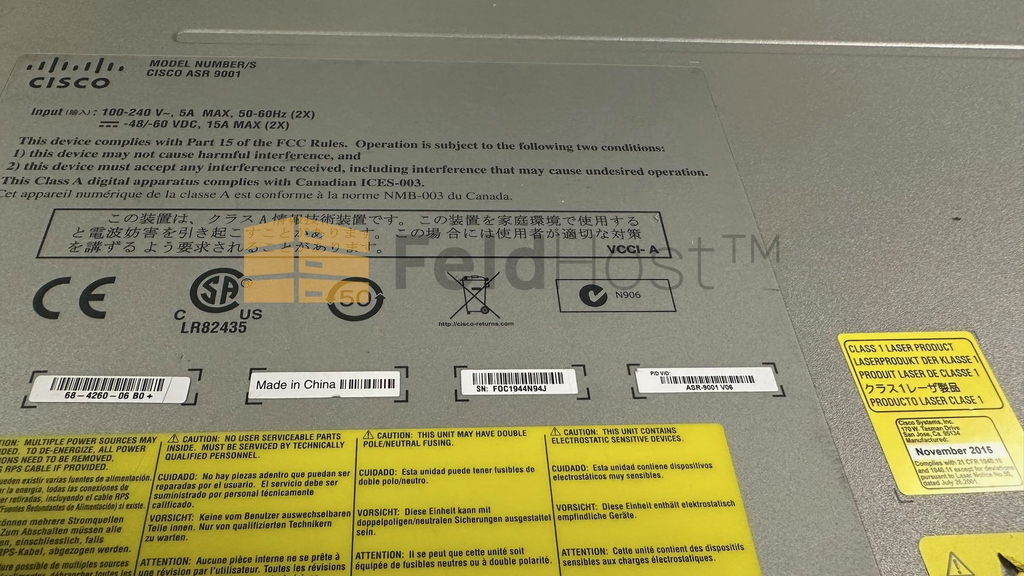

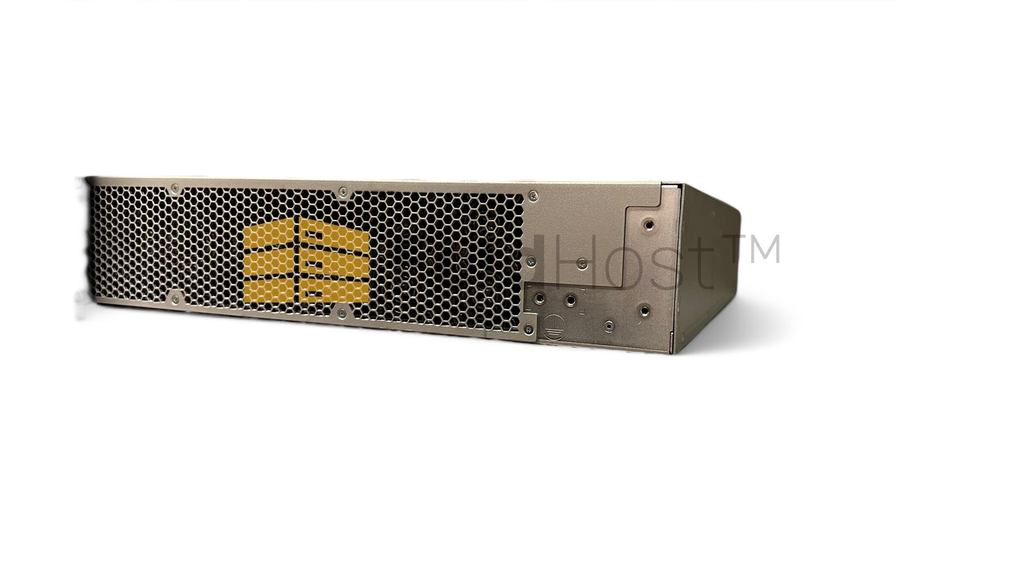

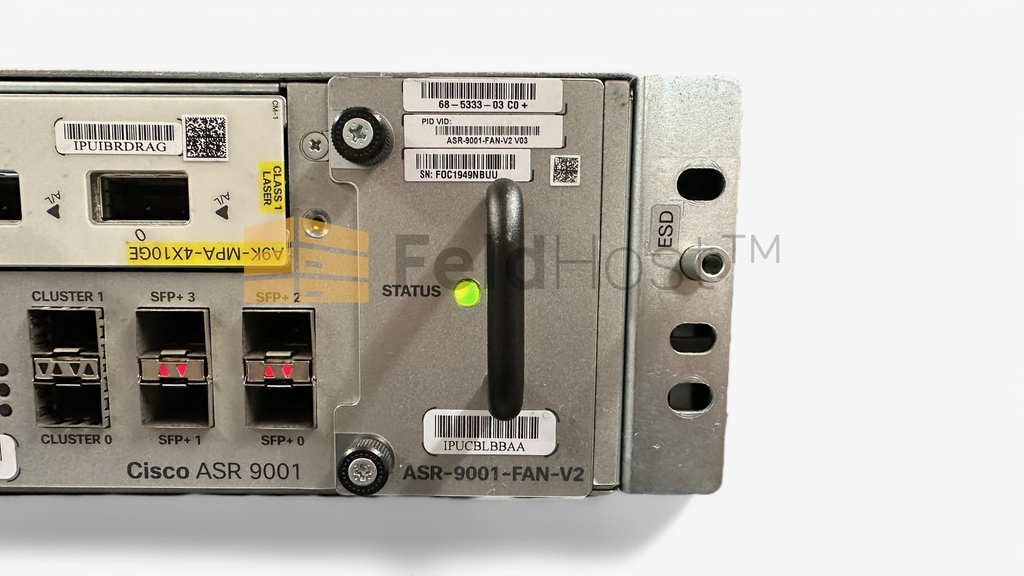

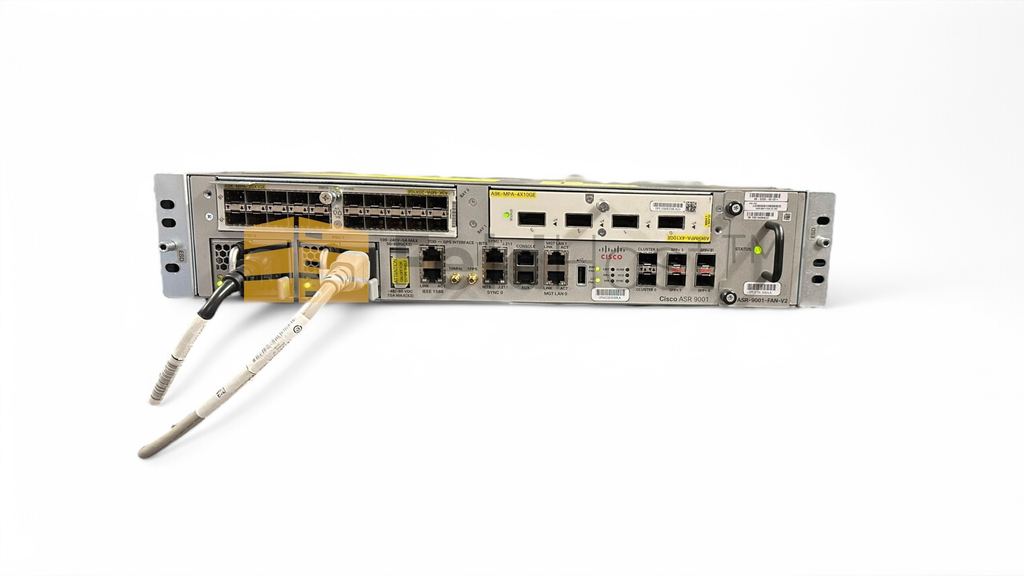

Cisco ASR-9001 Router
System Bootstrap, Version 3.4(20160919:102146) [ASR9K ROMMON],
Copyright (c) 1994-2016 by Cisco Systems, Inc.
Compiled Mon 19-Sep-16 15:51 by skumarss
Starting Initialization of FMAN0
Loading ucode for FMAN0, size: 6992, ver: 101.08.00
Starting Initialization of FMAN1
Loading ucode for FMAN1, size: 6992, ver: 101.08.00
Serdes Protocol: 0x10
CPU Reset Reason = 0x0001
Initializing GIGE SW...
PPC P40X0 (partnum 0x8023), Revision 03.00, (Core Version 03.01)
Sys Clock: 100 Mhz
Core Clock: 1500 Mhz
Plat Clock: 800 Mhz
LBC Clock: 25 Mhz
MEM Clock: 1300 Mhz
System Bootstrap, Version 3.4(20160919:102146) [ASR9K ROMMON],
Copyright (c) 1994-2016 by Cisco Systems, Inc.
Compiled Mon 19-Sep-16 15:51 by skumarss
Board Type: 0x100401
CPU Board => Rev: 0x3
=========
FPGA ver: 01.0f
CBC: 16.72
DTI programmed with latest image
TIMEX programmed with latest image
MLAN init done: ready to connect to the network
BCM5482PhyInit () : Port 0 --> SFP Not present
BCM5482PhyInit () : Port 1 --> SFP Not present
set_chassis_type: chassis_type=0xef0400 found=TRUE
ASR9001E (P40X0 PPC) RSP platform with 8192 Mb of main memory
program load complete, entry point: 0x100000, size: 0x2ac20
Set baud rate to: 9600
program load complete, entry point: 0x100000, size: 0x2ac20
Set baud rate to: 9600
MBI Candidate = disk0:asr9k-os-mbi-6.5.3/0x100000/mbiasr9k-rp.vm
CARD_SLOT_NUMBER: 0
CPU_INSTANCE: 1
MBI Validation starts ...
Disabling both Mgt LAN ports
Enabling Cluster Port 0 and disabling Port 1
BCM5482 cluster port-1 reset done !!
Port 0. SFP Not Ready (0:0). Init failed
dtsec_init_hw: configuring DTSEC (port 8) for: 1GB, Full Duplex
Interface link changed state to UP.
Interface link state up.
MBI validation sending request.
HIT CTRL-C to abort
..........
No MBI confirmation received from dSC
CARD_SLOT_NUMBER: 0
CPU_INSTANCE: 1
MBI Validation starts ...
Enabling Cluster Port 1 and disabling Port 0
BCM5482 cluster port-0 reset done !!
Port 1. SFP Not Ready (0:0). Init failed
dtsec_init_hw: configuring DTSEC (port 8) for: 1GB, Full Duplex
Interface link changed state to UP.
Interface link state up.
MBI validation sending request.
HIT CTRL-C to abort
..........
No MBI confirmation received from dSC
AUTOBOOT: Boot string = disk0:asr9k-os-mbi-6.5.3/0x100000/mbiasr9k-rp.vm,1;
AUTOBOOT: autobootstate=0, autobootcount=0, cmd=boot disk0:asr9k-os-mbi-6.5.3/0x100000/mbiasr9k-rp.vm
Boot Status 16
program load complete, entry point: 0x100000, size: 0x2ac20
Set baud rate to: 9600
MBI size from header = 21163336,Bootflash resident MBI filesize = 21163336
.................................................................................
program load complete, entry point: 0x2037e0, size: 0x142de48
Boot Status 17
Config = SMP, Running = SMP
Board type: 0x00100401
Card Capability = 0x00000000
#############################################################################################################
BSP: Board type : ASR9K-RSP-I
tracelogger: starting tracing in background ring mode
tracelogger running with args: -startring -F 1 -F 2
Restricted Rights Legend
Use, duplication, or disclosure by the Government is
subject to restrictions as set forth in subparagraph
(c) of the Commercial Computer Software - Restricted
Rights clause at FAR sec. 52.227-19 and subparagraph
(c) (1) (ii) of the Rights in Technical Data and Computer
Software clause at DFARS sec. 252.227-7013.
cisco Systems, Inc.
170 West Tasman Drive
San Jose, California 95134-1706
Cisco IOS XR Software for the Cisco XR ASR9K, Version 6.5.3
Copyright (c) 2019 by Cisco Systems, Inc.
Mar 13 11:51:58.831: Install Setup: Booting with committed software
Initializing Punt-switch ...
Initializing Punt-switch ...
Set RP CPU Cluster port in DSA mode
Init STP group for Cluster ports forwarding state control done
Cluster: Boot Request Filter configured
Cluster: Control Link monitor proto filter configured
Successfully initialized punt-switch(26 ports).
SPP has connected to PAKMAN....
SPP registered CPU port 4 with DPAA
SPP Port Idx 0 MAC addr --> 00:70:72:00:00:08
RP/0/RSP0/CPU0:Mar 13 11:51:28.602 UTC: imio[64]: %PLATFORM-IMIO-3-OPERATION_NOTIFY : imio_main: cold start
ios con0/RSP0/CPU0 is now available
Press RETURN to get started.
This product contains cryptographic features and is subject to United
States and local country laws governing import, export, transfer and
use. Delivery of Cisco cryptographic products does not imply third-party
authority to import, export, distribute or use encryption. Importers,
exporters, distributors and users are responsible for compliance with
U.S. and local country laws. By using this product you agree to comply
with applicable laws and regulations. If you are unable to comply with
U.S. and local laws, return this product immediately.
A summary of U.S. laws governing Cisco cryptographic products may be
found at:
http://www.cisco.com/wwl/export/crypto/tool/stqrg.html
If you require further assistance please contact us by sending email to
export@cisco.com.
User Access Verification
Username: admin
Password:
RP/0/RSP0/CPU0:ios#show environment
Thu Mar 13 12:03:15.578 UTC
Temperature Information
---------------------------------------------
R/S/I Modules Sensor (deg C)
0/RSP0/*
host Inlet0 21.7
host Inlet1 20.0
host Hotspot0 32.0
host Hotspot1 26.2
host Hotspot2 31.5
host Hotspot3 36.0
0/0/*
ep0 Inlet0 22.3
ep0 Hotspot0 27.4
ep1 Inlet0 22.6
ep1 Hotspot0 25.6
host Hotspot0 30.5
host Hotspot1 26.7
host Hotspot2 33.3
host Hotspot3 29.9
host Hotspot4 32.3
host Inlet0 26.6
Active temperature Alarms
---------------------------------------------
R/S/I Sensor Alarm Raised at (time)
Voltage Information
---------------------------------------------
R/S/I Modules Sensor (mV) Margin
0/RSP0/*
host 5.0V 5000 n/a
host VP3P3_CAN 3300 n/a
host 0.75V 750 n/a
host 3.3V_RSP 3299 n/a
host 2.5V_RSP 2499 n/a
host 1.8V_RSP 1800 n/a
host 1.5V_RSP 1500 n/a
host 1.2V_RSP 1199 n/a
host 1.9V_LDO_RSP 1899 n/a
host 1.2V_TIMEX 1199 n/a
host 1.0V_IMIO_CORE 999 n/a
host 1.8V_USB 1799 n/a
host 12.0V 11909 n/a
host 7.0V_RSP 7000 n/a
host 3.3V_OCXO_RSP 3300 n/a
host 1.0V_RSP 1000 n/a
0/0/*
host 5.0V 5000 n/a
host VP3P3_CAN 3300 n/a
host 2.5V 2499 n/a
host 0.75V 749 n/a
host 2.5V_DB 2500 n/a
host 1.8V_DB 1800 n/a
host 7.0V 7000 n/a
host VP1P0_SAC_CORE 999 n/a
host VP1P0_SAC_VDDA 1000 n/a
host VP1P0_SAC_VDDD 999 n/a
host VP1P2_SAC_VDDT 1199 n/a
host VP1P8_SAC_VDDR 1799 n/a
host VP1P0_SKT1_CORE 1000 n/a
host VP1P0_SKT2_CORE 999 n/a
host VP1P0_CPU_CORE 1000 n/a
host VP1P2 1199 n/a
host VP1P5 1499 n/a
host VP3P3_DB 3299 n/a
host VP1P5_DB 1499 n/a
host 1.2V_BLWDO 1200 n/a
host 1.0V_BLWDO 999 n/a
host 1.8V_LC 1800 n/a
host 1.0V_FPGA_CORE_LC 1000 n/a
host 1.2V_LC 1199 n/a
host 1.2V_PHY_LDO 1199 n/a
host 0.9V_PHY_LDO 899 n/a
host 0.9V_PHY_CORE 900 n/a
host 1.0V_LC_MB 999 n/a
host 3.3V_LC 3300 n/a
host 1.8V_ZAR_LDO 1800 n/a
host 3.3V_ZAR_LDO 3300 n/a
host 2.5V_SKT_SKM 2500 n/a
host 1.8V_LGTNG 1800 n/a
host 1.5V_NP4C_1 1500 n/a
host 1.5V_SKT 1499 n/a
host 1.05V_NP4C_CORE 1049 n/a
host 1.0V_SKT 1000 n/a
host 1.0V_SKM 1000 n/a
host 1.0V_LGTNG_CORE 1000 n/a
host 0.9V_TCAM0_CORE 910 n/a
host 0.9V_TCAM1_CORE 910 n/a
host 3.3V_CLK_LDO 3299 n/a
host 2.5V_CLK_LDO 2499 n/a
host 1.2V_WL_LDO 1200 n/a
host 1.0V_WL_LDO 1000 n/a
host 1.0V_PEX1 1000 n/a
host 1.0V_PEX2 1000 n/a
host 1.5V_NP4C2 1500 n/a
LED Information
---------------------------------------------
R/S/I Modules LED Status
0/RSP0/*
host Critical-Alarm Off
host Major-Alarm Off
host Minor-Alarm Off
host ACO Off
host Fail Off
BMC Information
---------------------------------------------
RP/0/RSP0/CPU0:ios#show inventory
Thu Mar 13 12:03:35.537 UTC
NAME: "module 0/RSP0/CPU0", DESCR: "ASR 9001, Route Switch Processor with 8GB memory"
PID: ASR9001-RP, VID: V01 , SN: FOC1942N8XX
NAME: "module 0/0/CPU0", DESCR: "ASR 9001, Modular Line Card"
PID: ASR9001-LC, VID: V01 , SN: FOC1942N97Z

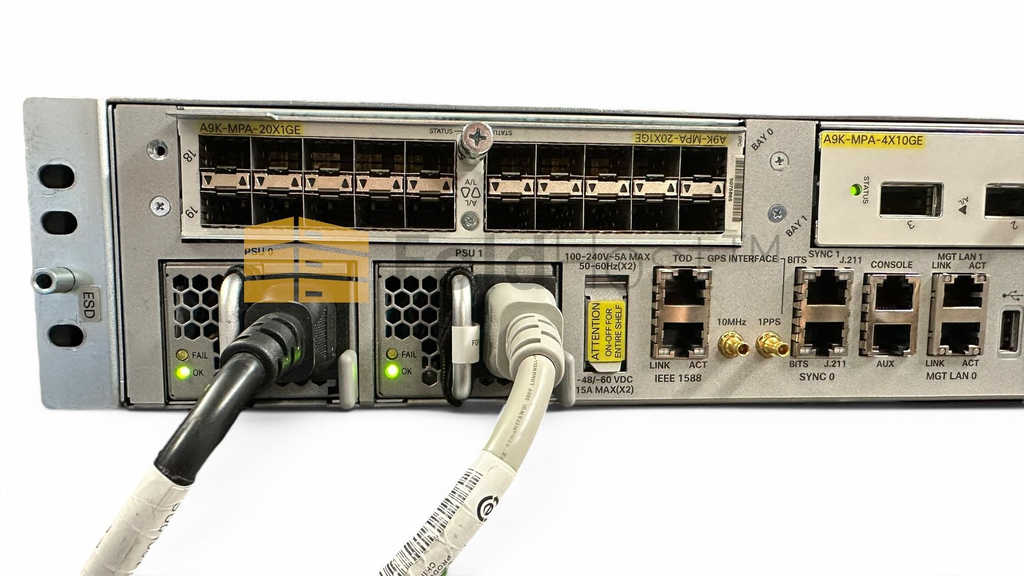

NAME: "module 0/0/0", DESCR: "ASR 9000 20-port 1GE Modular Port Adapter"
PID: A9K-MPA-20X1GE, VID: V03, SN: FOC1949N2HZ

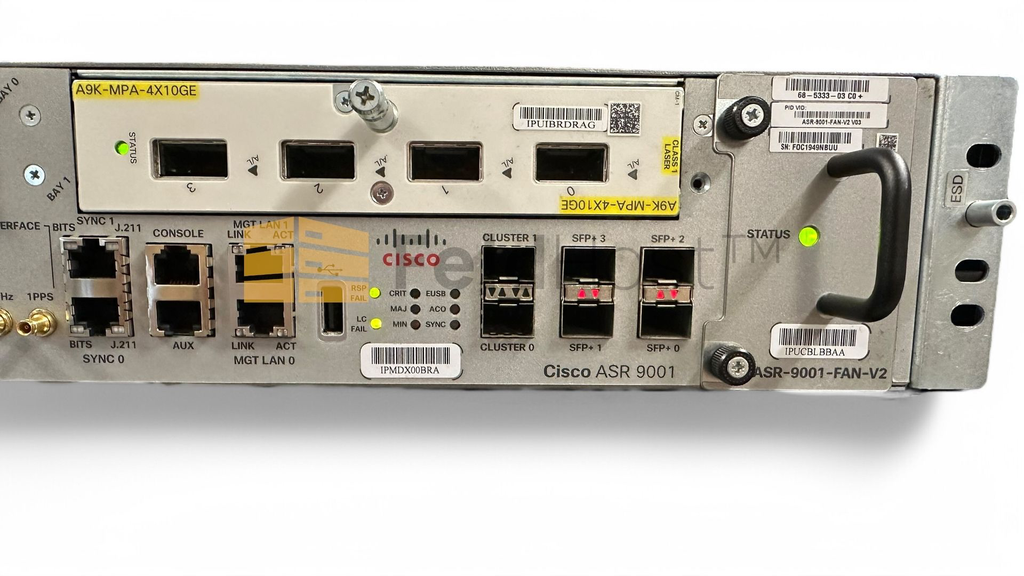

NAME: "module 0/0/1", DESCR: "ASR 9000 4-port 10GE Modular Port Adapter"
PID: A9K-MPA-4X10GE, VID: V07, SN: FOC2341N8DT
NAME: "module 0/0/2", DESCR: "ASR 9000 Virtual Module"
PID: A9K-MODULEv, VID: N/A, SN: N/A
RP/0/RSP0/CPU0:ios#show license
Thu Mar 13 12:03:48.861 UTC
Info : There are no features or licenses to display.
Condition :
