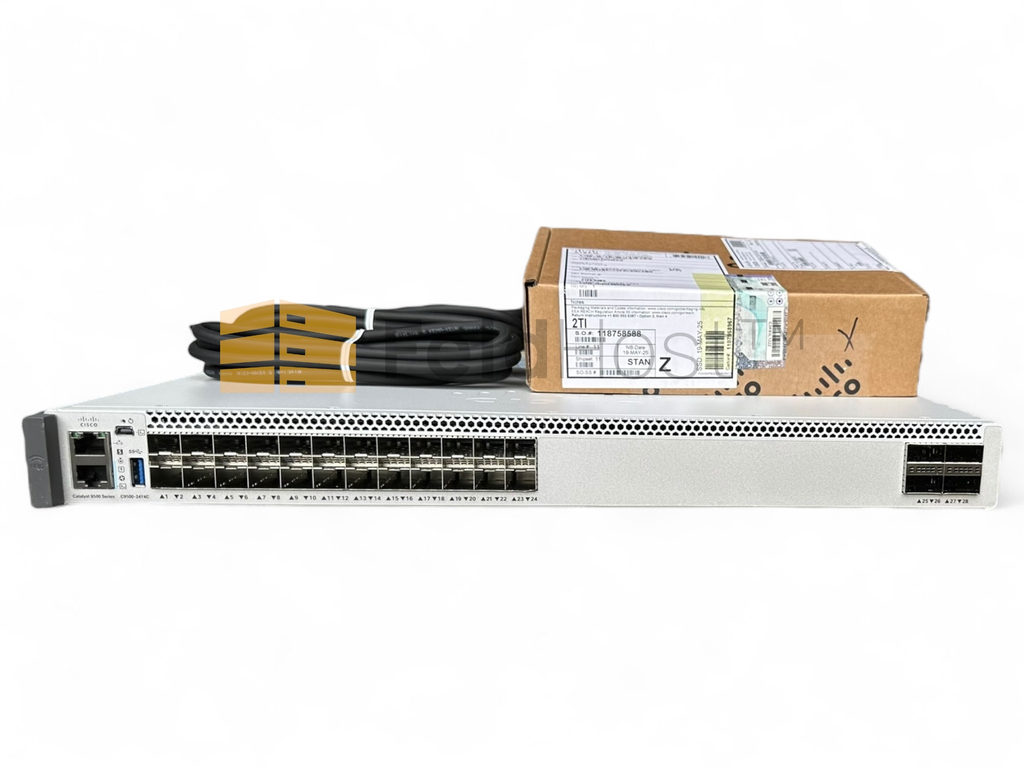

Cisco Catalyst 9500 24-port SFP28 25GbE with 3x100GbE uplink, Network Advantage, DNA Advantage till 04/2026 C9500-24Y4C-A

Switch#show inventory
NAME: "Chassis", DESCR: "Cisco Catalyst 9500 Series Chassis"
PID: C9500-24Y4C       , VID: V06  , SN: ***********

NAME: "Power Supply Module 0", DESCR: "Cisco Catalyst 9500 Series 650W AC Power Supply"
PID: C9K-PWR-650WAC-R  , VID: V01  , SN: ***********

NAME: "Power Supply Module 1", DESCR: "Cisco Catalyst 9500 Series 650W AC Power Supply"
PID: C9K-PWR-650WAC-R  , VID: V01  , SN: ***********

NAME: "Fan Tray 0", DESCR: "Cisco Catalyst 9500 Series Fan Tray"
PID: C9K-T1-FANTRAY    , VID:      , SN:

NAME: "Fan Tray 1", DESCR: "Cisco Catalyst 9500 Series Fan Tray"
PID: C9K-T1-FANTRAY    , VID:      , SN:

NAME: "Slot 1 Supervisor", DESCR: "Cisco Catalyst 9500 Series Router"
PID: C9500-24Y4C       , VID: V06  , SN: ***********


Switch#show env
Switch#show environment all
Sensor List:  Environmental Monitoring
 Sensor                  Location        State           Reading
 PSOC-MB_0: VOUT         R0              Normal          12110 mV
 PSOC-MB_1: VOUT         R0              Normal          3315 mV
 PSOC-MB_2: VOUT         R0              Normal          12051 mV
 PSOC-MB_3: VOUT         R0              Normal          6977 mV
 PSOC-MB_4: VOUT         R0              Normal          5000 mV
 PSOC-MB_5: VOUT         R0              Normal          3297 mV
 PSOC-MB_7: VOUT         R0              Normal          2498 mV
 PSOC-MB_8: VOUT         R0              Normal          1800 mV
 PSOC-MB_9: VOUT         R0              Normal          1499 mV
 PSOC-MB_10: VOU         R0              Normal          1200 mV
 3570MB1_0: VOUT         R0              Normal          1000 mV
 3570MB2_0: VOUT         R0              Normal          1000 mV
 3570MB3_0: VOUT         R0              Normal          1651 mV
 35215MB1_0: VOU         R0              Normal          773 mV
 35215MB2_0: VOU         R0              Normal          898 mV
 Temp: Outlet_A          R0              Normal          35 Celsius
 Temp: Outlet_B          R0              Normal          32 Celsius
 Temp: Inlet_A           R0              Normal          35 Celsius
 Temp: Inlet_B           R0              Normal          32 Celsius
 Temp: UADP_0_0          R0              Normal          44 Celsius
 Temp: UADP_0_1          R0              Normal          45 Celsius
 Temp: UADP_0_2          R0              Normal          45 Celsius
 Temp: UADP_0_3          R0              Normal          45 Celsius
 Temp: UADP_0_4          R0              Normal          45 Celsius
 Temp: UADP_0_5          R0              Normal          44 Celsius
 Temp: UADP_0_6          R0              Normal          44 Celsius
 Temp: UADP_0_7          R0              Normal          45 Celsius
 Temp: UADP_0_8          R0              Normal          44 Celsius
 PSOC-DB_1: VOUT         R0              Normal          4998 mV
 PSOC-DB_2: VOUT         R0              Normal          3299 mV
 PSOC-DB_4: VOUT         R0              Normal          2499 mV
 PSOC-DB_5: VOUT         R0              Normal          1699 mV
 PSOC-DB_7: VOUT         R0              Normal          1499 mV
 PSOC-DB_8: VOUT         R0              Normal          1299 mV
 PSOC-DB_11: VOU         R0              Normal          600 mV
 3570DB1_0: VOUT         R0              Normal          1787 mV
 3570DB2_0: VOUT         R0              Normal          1199 mV
 3570DB3_0: VOUT         R0              Normal          1050 mV
 Temp: Coretemp          R0              Normal          42 Celsius
 Temp: OutletDB          R0              Normal          35 Celsius

Power                                                    Fan States
Supply  Model No              Type  Capacity  Status     0     1
------  --------------------  ----  --------  ---------  -----------
PS0     C9K-PWR-650WAC-R      AC    650 W     ok         good  N/A
PS1     C9K-PWR-650WAC-R      AC    650 W     ok         good  N/A

Fan                 Fan States
Tray    Status      0     1     2     3
------  ----------  -----------------------
FM0     ok          good  good  good  good
FM1     ok          good  good  good  good


Switch#show lice
Switch#show license all
Smart Licensing Status
======================

Smart Licensing is ENABLED

Export Authorization Key:
  Features Authorized:
    <none>

Utility:
  Status: DISABLED

Smart Licensing Using Policy:
  Status: ENABLED

Data Privacy:
  Sending Hostname: yes
    Callhome hostname privacy: DISABLED
    Smart Licensing hostname privacy: DISABLED
  Version privacy: DISABLED

Transport:
  Type: cslu
  Cslu address: <empty>
  Proxy:
    Not Configured

Miscellaneous:
  Custom Id: <empty>

Policy:
  Policy in use: Merged from multiple sources.
  Reporting ACK required: yes (CISCO default)
  Unenforced/Non-Export Perpetual Attributes:
    First report requirement (days): 365 (CISCO default)
    Reporting frequency (days): 0 (CISCO default)
    Report on change (days): 90 (CISCO default)
  Unenforced/Non-Export Subscription Attributes:
    First report requirement (days): 90 (CISCO default)
    Reporting frequency (days): 90 (CISCO default)
    Report on change (days): 90 (CISCO default)
  Enforced (Perpetual/Subscription) License Attributes:
    First report requirement (days): 0 (CISCO default)
    Reporting frequency (days): 0 (CISCO default)
    Report on change (days): 0 (CISCO default)
  Export (Perpetual/Subscription) License Attributes:
    First report requirement (days): 0 (CISCO default)
    Reporting frequency (days): 0 (CISCO default)
    Report on change (days): 0 (CISCO default)

Usage Reporting:
  Last ACK received: <none>
  Next ACK deadline: Nov 10 17:20:39 2025 UTC
  Reporting push interval: 30  days
  Next ACK push check: <none>
  Next report push: Aug 12 17:22:39 2025 UTC
  Last report push: <none>
  Last report file write: <none>

Trust Code Installed: <none>

License Usage
=============

network-advantage (C9500 Network Advantage):
  Description: network-advantage
  Count: 1
  Version: 1.0
  Status: IN USE
  Export status: NOT RESTRICTED
  Feature Name: network-advantage
  Feature Description: network-advantage
  Enforcement type: NOT ENFORCED
  License type: Perpetual

dna-advantage (C9500 24Y4C DNA Advantage):
  Description: C9500 24Y4C DNA Advantage
  Count: 1
  Version: 1.0
  Status: IN USE
  Export status: NOT RESTRICTED
  Feature Name: dna-advantage
  Feature Description: C9500 24Y4C DNA Advantage
  Enforcement type: NOT ENFORCED
  License type: Subscription

Product Information
===================
UDI: PID:C9500-24Y4C,SN:***********

Agent Version
=============
Smart Agent for Licensing: 5.1.29_rel/134

License Authorizations
======================
Overall status:
  Active: PID:C9500-24Y4C,SN:***********
      Status: NOT INSTALLED

Purchased Licenses:
  C9500 Network Advantage (C9500 Network Advantage):
    Description: C9500 Network Advantage
    Total reserved count: 1
    Term information:
      Active: PID:C9500-24Y4C,SN:***********
        License type: PERPETUAL
          Term Count: 1
  C9500 24Y4C DNA Advantage (C9500 24Y4C DNA Advantage):
    Description: C9500 24Y4C DNA Advantage
    Total reserved count: 1
    Term information:
      Active: PID:C9500-24Y4C,SN:***********
        License type: TERM
          Start Date: 2023-APR-18 UTC
          End Date: 2026-APR-18 UTC
          Term Count: 1
