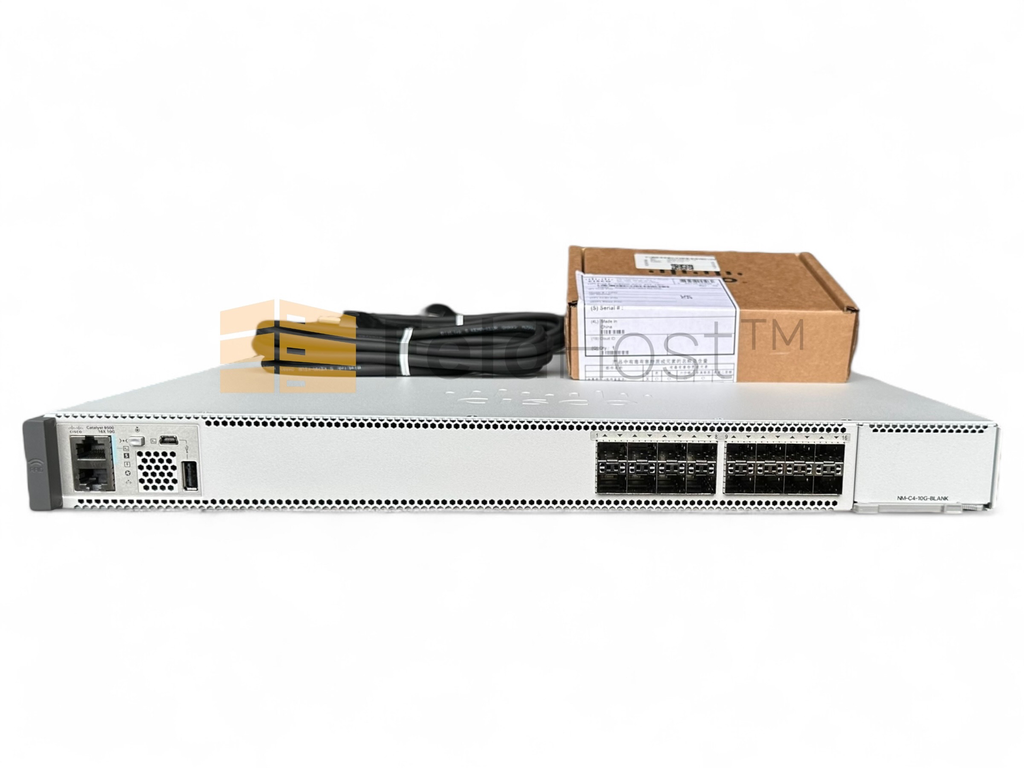

Cisco Catalyst 9500 16-port SFP+ 10GbE with modular uplink, Network Advantage, DNA Advantage till 04/2026 C9500-16X-A

Switch#show inventory
NAME: "c95xx Stack", DESCR: "c95xx Stack"
PID: C9500-16X         , VID: V02  , SN: ***********

NAME: "Switch 1", DESCR: "C9500-16X"
PID: C9500-16X         , VID: V02  , SN: ***********

NAME: "Switch 1 - Power Supply A", DESCR: "Switch 1 - Power Supply A"
PID: PWR-C4-950WAC-R   , VID: V01  , SN: ***********

NAME: "Switch 1 - Power Supply B", DESCR: "Switch 1 - Power Supply B"
PID: PWR-C4-950WAC-R   , VID: V01  , SN: ***********


Switch#show environment all
Sensor List: Environmental Monitoring
 Sensor          Location        State               Reading       Range(min-max)
 PS1 Vout        1               GOOD               11893 mV          na
 PS1 Vin         1               GOOD              238750 mV        90 - 264
 PS1 CURin       1               GOOD                 362 mA          na
 PS1 Curout      1               GOOD                5063 mA          na
 PS1 POWin       1               GOOD               73875 mW          na
 PS1 POWout      1               GOOD               60188 mW          na
 PS1 FAN         1               GOOD                8640 rpm         na
 PS2 Vout        1               GOOD               11912 mV          na
 PS2 Vin         1               GOOD              229750 mV        90 - 264
 PS2 CURin       1               GOOD                 329 mA          na
 PS2 CURout      1               GOOD                4445 mA          na
 PS2 POWin       1               GOOD               62250 mW          na
 PS2 POWout      1               GOOD               53000 mW          na
 PS2 FAN         1               GOOD                8656 rpm         na
 SYSTEM INLET    1               GREEN                 29 Celsius   0 - 56
 SYSTEM OUTLET   1               GREEN                 32 Celsius   0 - 125
 SYSTEM HOTSPOT  1               GREEN                 53 Celsius   0 - 125

Switch   FAN     Speed   State   Airflow direction
---------------------------------------------------
  1       1     36640     OK     Front to Back
  1       2     36640     OK     Front to Back
  1       3     36640     OK     Front to Back
  1       4     36640     OK     Front to Back
  1       5     36640     OK     Front to Back

SW  PID                 Serial#     Status           Sys Pwr  PoE Pwr  Watts
--  ------------------  ----------  ---------------  -------  -------  -----
1A  PWR-C4-950WAC-R     ***********  OK              Good     n/a      950
1B  PWR-C4-950WAC-R     ***********  OK              Good     n/a      950

---------------------------------------------------

Switch#show license all
Smart Licensing Status
======================

Smart Licensing is ENABLED

Export Authorization Key:
  Features Authorized:
    <none>

Utility:
  Status: DISABLED

Smart Licensing Using Policy:
  Status: ENABLED

Data Privacy:
  Sending Hostname: yes
    Callhome hostname privacy: DISABLED
    Smart Licensing hostname privacy: DISABLED
  Version privacy: DISABLED

Transport:
  Type: cslu
  Cslu address: <empty>
  Proxy:
    Not Configured

Miscellaneous:
  Custom Id: <empty>

Policy:
  Policy in use: Merged from multiple sources.
  Reporting ACK required: yes (CISCO default)
  Unenforced/Non-Export Perpetual Attributes:
    First report requirement (days): 365 (CISCO default)
    Reporting frequency (days): 0 (CISCO default)
    Report on change (days): 90 (CISCO default)
  Unenforced/Non-Export Subscription Attributes:
    First report requirement (days): 90 (CISCO default)
    Reporting frequency (days): 90 (CISCO default)
    Report on change (days): 90 (CISCO default)
  Enforced (Perpetual/Subscription) License Attributes:
    First report requirement (days): 0 (CISCO default)
    Reporting frequency (days): 0 (CISCO default)
    Report on change (days): 0 (CISCO default)
  Export (Perpetual/Subscription) License Attributes:
    First report requirement (days): 0 (CISCO default)
    Reporting frequency (days): 0 (CISCO default)
    Report on change (days): 0 (CISCO default)

Usage Reporting:
  Last ACK received: <none>
  Next ACK deadline: Nov 10 17:42:08 2025 UTC
  Reporting push interval: 30  days
  Next ACK push check: <none>
  Next report push: Aug 12 17:44:08 2025 UTC
  Last report push: <none>
  Last report file write: <none>

Trust Code Installed: <none>

License Usage
=============

network-advantage (C9500 Network Advantage):
  Description: network-advantage
  Count: 1
  Version: 1.0
  Status: IN USE
  Export status: NOT RESTRICTED
  Feature Name: network-advantage
  Feature Description: network-advantage
  Enforcement type: NOT ENFORCED
  License type: Perpetual

dna-advantage (C9500-16X DNA Advantage):
  Description: C9500-16X DNA Advantage
  Count: 1
  Version: 1.0
  Status: IN USE
  Export status: NOT RESTRICTED
  Feature Name: dna-advantage
  Feature Description: C9500-16X DNA Advantage
  Enforcement type: NOT ENFORCED
  License type: Subscription

Product Information
===================
UDI: PID:C9500-16X,SN:***********

Agent Version
=============
Smart Agent for Licensing: 5.1.29_rel/134

License Authorizations
======================
Overall status:
  Active: PID:C9500-16X,SN:***********
      Status: NOT INSTALLED

Purchased Licenses:
  C9500-DNA-16X-A (C9500-16X DNA Advantage):
    Description: C9500-DNA-16X-A
    Total reserved count: 1
    Term information:
      Active: PID:C9500-16X,SN:***********
        License type: TERM
          Start Date: 2023-APR-04 UTC
          End Date: 2026-APR-04 UTC
          Term Count: 1
  C9500 Network Advantage (C9500 Network Advantage):
    Description: C9500 Network Advantage
    Total reserved count: 1
    Term information:
      Active: PID:C9500-16X,SN:***********
        License type: PERPETUAL
          Term Count: 1
