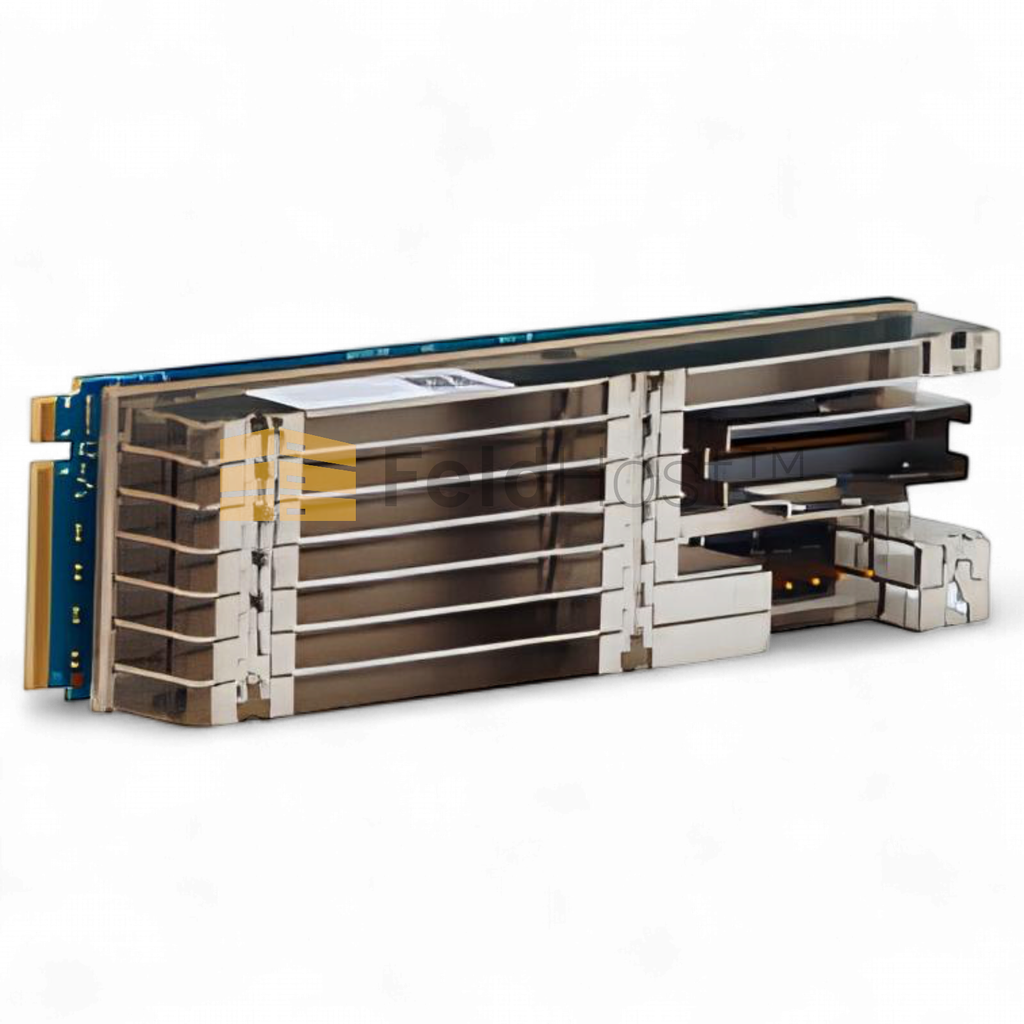

The 9524-8i is Broadcom’s first M.2 form factor storage adapter. The adapter fits M.2 slots, providing support for up to eight drives leaving free the PCIe slot for higher performance applications.
Leveraging Broadcom’s MegaRAID iMR entry RAID firmware, the 9524-8i supports JBOD mode and RAID 0, 1 and 10 without requiring the Reserved Memory Region Reporting (RMRR) structure. The MegaRAID 9524-8i is powered by the SAS3808N on-chip memory to carry out the RAID and other necessary operations and allows for easy integration into system architectures that do not have a memory reservation capability to support a traditional iMR solution.
The adapters' Tri-Mode SerDes technology negotiates between speeds and protocols to seamlessly to enable the operation of NVMe, SAS or SATA devices in a single drive bay getting the most performance and flexibility out of any drive protocol.
Key Features
- Connect up to 16 SAS/SATA or 2 NVMe drives
- Balance protection and performance for critical applications with RAID 0, 00, 1, 10
- Support critical, high-bandwidth applications with PCIe 4.0 connectivity
- Advanced security through hardware secure boot
| Specification | Value |
|---|
| Lifecycle | Active |
|---|
| Distributor Inventory | No |
|---|
| Data Transfer Rates | 12Gb/s SAS and 16GT/s PCIe Gen4 (NVMe) compliant |
|---|
| Devices Supported | SAS/SATA: 16, NVMe: 2 |
|---|
| Generation | 12 Gb/s |
|---|
| Host Bus Type | x8 lane PCI Express 4.0 |
|---|
| I/O Processor / SAS Controller | SAS3808 |
|---|
| Internal Connectors | 1 x8 SFF-8654 (SlimSAS) |
|---|
| Internal Ports | 8 |
|---|
| Management Software | LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure) |
|---|
| MTBF | >3,000,000 hours at 40° C |
|---|
| Operating Temperature°C | 0°C to 55°C |
|---|
| OS | Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD |
|---|
| Physical Dimensions | 22 (+/- 0.15) mm x 80 (+/- 0.15) mm |
|---|
| RAID Levels | 0, 1, 10 |
|---|
| Regulatory Certifications | Australia/New Zealand (AS/NZS CISPR 22), Canada (ICES -003, Class B), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS compliant, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE |
|---|
| Typical Power | 6.0W |
|---|
